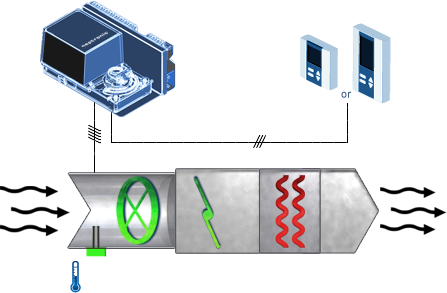

Control Features

Field configured VAV algorithms

Built-in actuator 70in.lb [8Nm]

On board differential pressure sensor (pressure independent models)

Manual or automatic pressure mode selection (pressure independent models)

Configurable Inputs

2 analog inputs

2 digital inputs

Configurable

Outputs 2 analog outputs

Up to 4 TRIAC outputs

Configurable PI (Proportional-Integral) function

Simple air balancing and commissioning via thermostat Independent,configurable proportional control band and dead band per ramp

Selectable internal or external temperature sensor (10KO)

External CO2 sensor input with integrated logic

Change over by contact or external temperature sensor

Freeze protection

Operational Features

24 Vac operation

Backlit LCD with simple icon and text driven menus

Configurable user display: setpoint, demand, temperature, etc. Selectable Fahrenheit or Celsius scale "Night Set Back" or "No Occupancy" modes with manual override

Multi level lockable access menu

Lockable setpoint Removable, raising clamp, non-strip terminals

24Vac thermal fuse for overheat protection

Network Communication BACnet MS/TP or Modbus RTU (selectable via menu)

Select MAC address via DIP switch or via network

BACnet MS/TP MS/TP @9600, 19200, 38400 or 76800 bps BACnet scheduler (up to 6 events)

Firmware upgradeable via network

COV (change of value)

Copy and broadcast configuration to other EFCB modules via menu or network

Automatic baud rate detection

Automatic device instance configuration

Modbus RTU Modbus RTU @9600, 19200, 38400 or 57600 bps RTU Slave, 8 bits (configurable parity and stop bits)

Model	Pressure	Triac	Feedback
EVCB14NIT0S	Independent	0	-
EVCB14NIT2S	Independent	2	-
EVCB14NIT4S*	Independent	4	-
EVCB14NDT4S*	Dependent	4	-
EVCB14NIT0SF	Independent	0	Yes
EVCB14NIT4SF*	Independent	4	Yes

* Includes options for "fan powered box" applications

Thermostat Model

Model	Size
TRL54	3 x 3
TRL24	2 x 3

More technical info on VAV systems
http://www.ashrae.org/File%20Library/docLib/Journal%20Documents/2011%20October/018-029_murphy.pdf

http://www.ashrae.org/File%20Library/docLib/Public/2006412101925_686.pdf
http://www.ashraeqatar.com/images/VAV_fundamentals_ASHRAE.pdf
